VK4FC-5H

Single-Stage Piston

E-mail

VK001@vocke-compressors.com

Message

Online consultation

Product Details

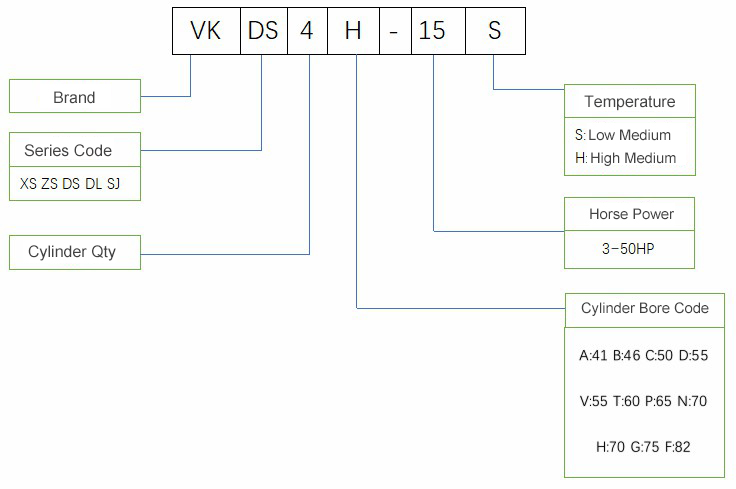

Model Introduction

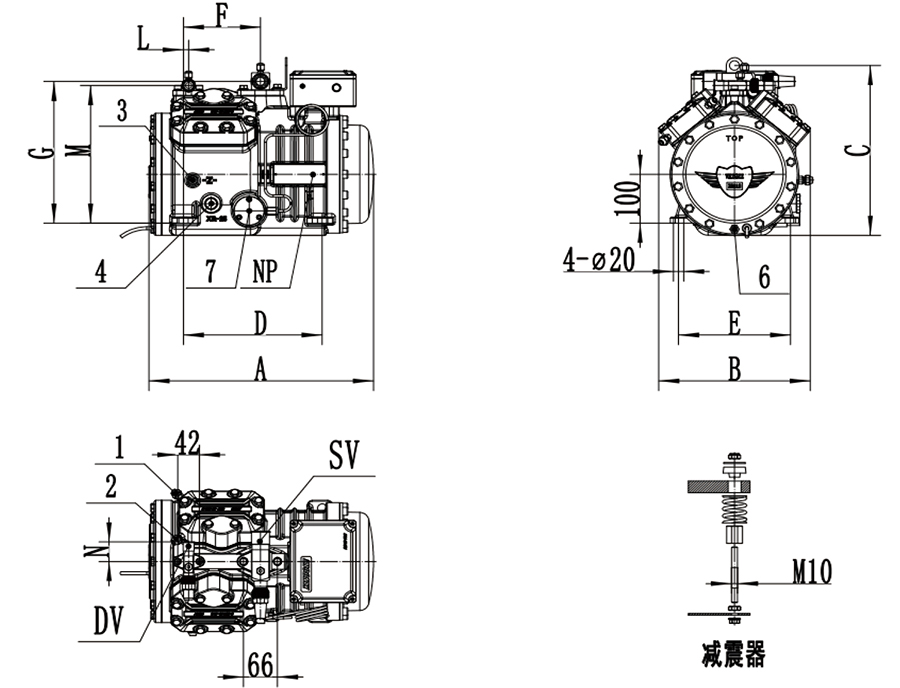

XS Series Dimension

Model	LxWxH			Installation Dimension		Suction valve			Discharge valve			Suction Connect		Discharge Connect		NW
	A	B	C	D	E	F	G	H	L	M	N	SV		DV
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm		kg
VKXS4A-3S	437	296	364	270	218	150	290	61	10	282	40	22 ⁷/₈		16 ⁵/₈		71
VKXS4A-5H	437	296	364	270	218	150	290	61	10	282	40	22 ⁷/₈		16 ⁵/₈		74
VKXS4B-4S	437	296	364	270	218	150	290	61	10	282	40	28 1 ¹/₈		16 ⁵/₈		71
VKXS4B-6H	437	296	364	270	218	150	290	61	10	28	40	28 1 ¹/₈		16 ⁵/₈		76
VKXS4C-5S	437	296	364	270	218	150	290	61	10	282	40	28 1 ¹/₈		22 ⁷/₈		76
VKXS4C-7H	448	296	364	270	218	150	290	61	10	282	40	28 1 ¹/₈		22 ⁷/₈		78
VKXS4D-6S	448	296	364	270	218	150	290	61	10	282	40	28 1 ¹/₈		22 ⁷/₈		80
VKXS4D-9H	448	296	364	270	218	150	290	61	10	282	40	28 1 ¹/₈		22 ⁷/₈		81

1	HP connect	R_C ¹/₈ -28
2	LP connect	R_C ¹/₈-28
3	Oil filling plug (oil return port)	R_C ¹/₄-19
4	Oil sight glass	1¹/₈ -18UN
5	Crankcase heater	φ 11
6	Oil drain plug	M10*30
7	Electronic oil level controller	M6*30

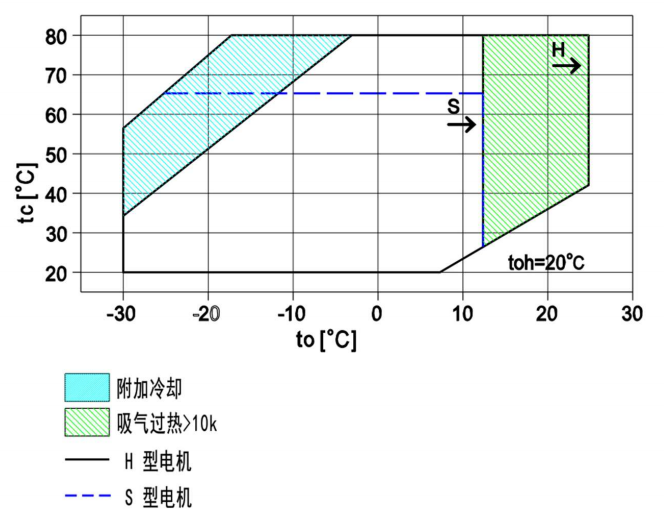

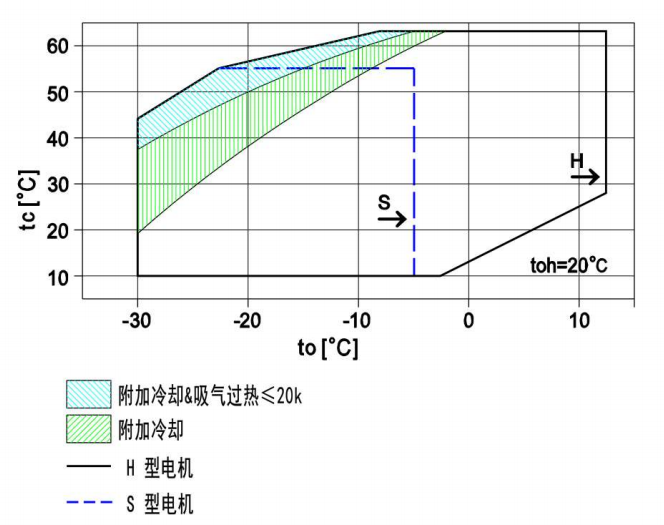

Operating Range

R404a R507a VKXS4A-3S.. VKXS4D-9H	R22 VKXS4A-3S.. VKDL6F-50H	R134a VKXS4A-3S.. VKDL6F-50H

Previous Page

Next

Previous Page

Next Page

Related Products

VK4FC-3S

● <b>Power Input: </b>△/Ｙ (220..240v△ 380..420vY/3/50Hz ; 265..290v△ 440..480vY/3/60Hz) ● <b>Displacement: </b>18.1m&sup3/h (50Hz) ; 21.8m&sup3/h (60Hz) ● <b>Cylinders×Bore×Stroke: </b>4mm × 41mm × 39.3mm ● <b>Oil Charge: </b>2dm&sup3 ● <b>Discharge Line: </b>16mm or 5/8inch ● <b>Suction Line: </b>22mm or 7/8inch ● <b>max. Operating Current: </b>15.9A (50Hz) ; 9.2A (60Hz) ● <b>max. Power Consumption: </b>5.3kw ● <b>Weight: </b>71kg ● <b>Refrigeration: </b>R22, R134a, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R507A, R513A, R1234yf, R1234ze ● <b>Optional: </b>Electronic Oil Pressure Differential Controller & Integrated Oil Level Protector

VK4FC-5H

● <b>Power Input: </b>△/Ｙ (220..240v△ 380..420vY/3/50Hz ; 265..290v△ 440..480vY/3/60Hz) ● <b>Displacement: </b>18.1m&sup3/h (50Hz) ; 21.8m&sup3/h (60Hz) ● <b>Cylinders×Bore×Stroke: </b>4mm × 41mm × 39.3mm ● <b>Oil Charge: </b>2dm&sup3 ● <b>Discharge Line: </b>16mm or 5/8inch ● <b>Suction Line: </b>22mm or 7/8inch ● <b>max. Operating Current: </b>18.7A (50Hz) ; 10.8A (60Hz) ● <b>max. Power Consumption: </b>5.8kw ● <b>Weight: </b>74kg ● <b>Refrigeration: </b>R22, R134a, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R507A, R513A, R1234yf, R1234ze ● <b>Optional: </b>Electronic Oil Pressure Differential Controller & Integrated Oil Level Protector

VK4EC-4S

● <b>Power Input: </b>△/Ｙ (220..240v△ 380..420vY/3/50Hz ; 265..290v△ 440..480vY/3/60Hz) ● <b>Displacement: </b>22.7m&sup3/h (50Hz) ; 27.4m&sup3/h (60Hz) ● <b>Cylinders×Bore×Stroke: </b>4mm × 46mm × 39.3mm ● <b>Oil Charge: </b>2dm&sup3 ● <b>Discharge Line: </b>16mm or 5/8inch ● <b>Suction Line: </b>28mm or 11/8inch ● <b>max. Operating Current: </b>18.5A (50Hz) ; 10.7A (60Hz) ● <b>max. Power Consumption: </b>6.9kw ● <b>Weight: </b>71kg ● <b>Refrigeration: </b>R22, R134a, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R507A, R513A, R1234yf, R1234ze ● <b>Optional: </b>Electronic Oil Pressure Differential Controller & Integrated Oil Level Protector

VK4EC-6H

● <b>Power Input: </b>△/Ｙ (220..240v△ 380..420vY/3/50Hz ; 265..290v△ 440..480vY/3/60Hz) ● <b>Displacement: </b>22.7m&sup3/h (50Hz) ; 27.4m&sup3/h (60Hz) ● <b>Cylinders×Bore×Stroke: </b>4mm × 46mm × 39.3mm ● <b>Oil Charge: </b>2dm&sup3 ● <b>Discharge Line: </b>16mm or 5/8inch ● <b>Suction Line: </b>28mm or 11/8inch ● <b>max. Operating Current: </b>22.9A (50Hz) ; 13.2A (60Hz) ● <b>max. Power Consumption: </b>7.6kw ● <b>Weight: </b>76kg ● <b>Refrigeration: </b>R22, R134a, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R507A, R513A, R1234yf, R1234ze ● <b>Optional: </b>Electronic Oil Pressure Differential Controller & Integrated Oil Level Protector
