VKZS4N
Classification:
Key words:
Share:
Product Details

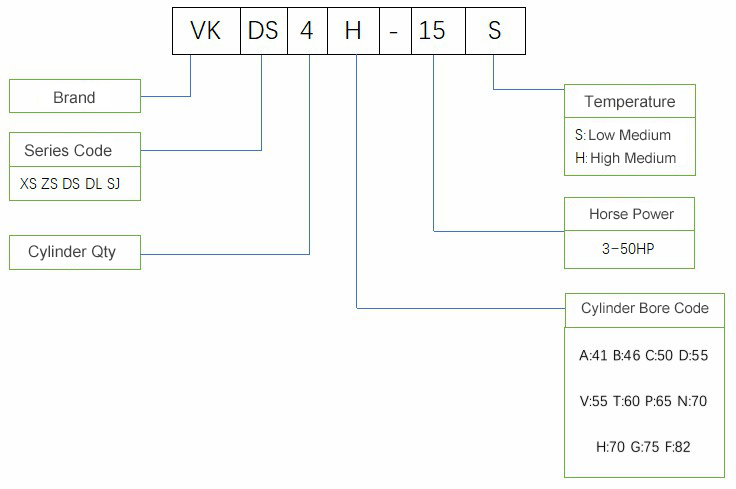

Model Introduction

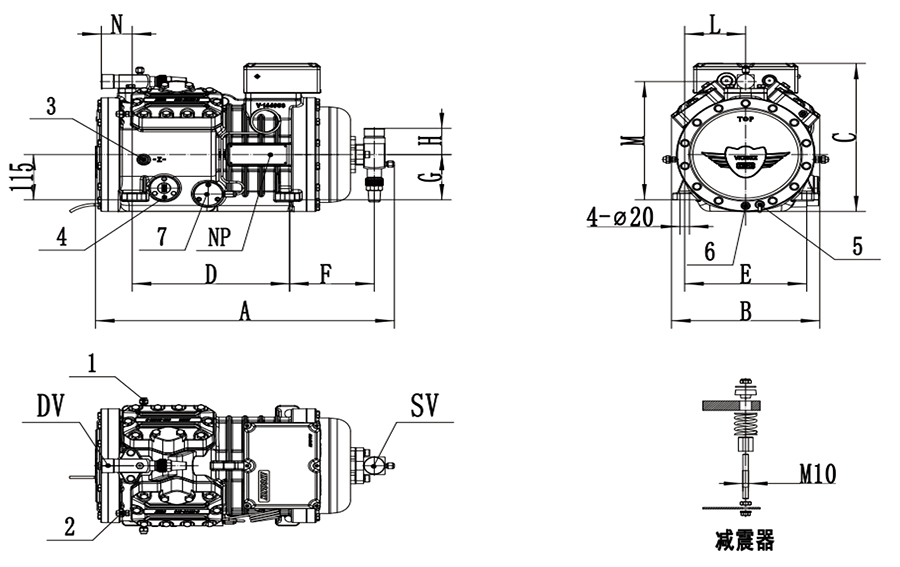

ZS Series Dimension
|
Model |
LxWxH | Installation Dimension | Suction valve | Discharge valve | Suction Connect | Discharge Connect | NW | |||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
L |
M |
N |
SV |
DV |
|
|||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
|||
|
VKZS4V-6S |
628 |
311 |
377 |
330 |
256 |
178 |
115 |
66 |
128 |
301 |
65 |
28 1¹/8 |
22 7/8 |
116 |
||
|
VKZS4V-10H |
628 |
311 |
377 |
330 |
256 |
178 |
1 15 |
66 |
128 |
301 |
65 |
28 1¹/8 |
22 7/8 |
126 |
||
|
VKZS4T-8S |
628 |
311 |
377 |
330 |
256 |
178 |
115 |
66 |
128 |
301 |
65 |
35 1³/8 |
28 1¹/8 |
121 |
||
|
VKZS4T-12H |
628 |
311 |
377 |
330 |
256 |
178 |
115 |
66 |
128 |
301 |
65 |
35 1³/8 | 28 1¹/8 |
128 |
||
|
VKZS4P-10S |
628 |
311 |
377 |
330 |
256 |
178 |
115 |
66 |
128 |
301 |
65 |
35 1³/8 | 28 1¹/8 |
126 |
||
|
VKZS4P-15H |
685 |
311 |
377 |
330 |
256 |
212 |
115 |
1 12 |
128 |
301 |
65 |
35 1³/8 |
28 1¹/8 |
134 |
||
|
VKZS4N-12S |
628 |
311 |
377 |
330 |
256 |
178 |
115 |
66 |
128 |
301 |
65 |
42 15/8 | 28 1¹/8 |
128 |
||
|
VKZS4N-20H |
685 |
311 |
377 |
330 |
256 |
212 |
115 |
112 |
128 |
301 |
65 |
42 15/8 |
28 1¹/8 |
137 |
||
|
1 |
HP connect |
RC 1/8 -28 |
|
2 |
LP connect |
RC 1/8 -28 |
|
3 |
Oil filling plug (oil return port) |
RC 1/4 -19 |
|
4 |
Oil sight glass |
M6* 16 |
|
5 |
Crankcase heater |
φ 11 |
|
6 |
Oil drain plug |
M10*30 |
|
7 |
Electronic oil level controller |
M6*30 |

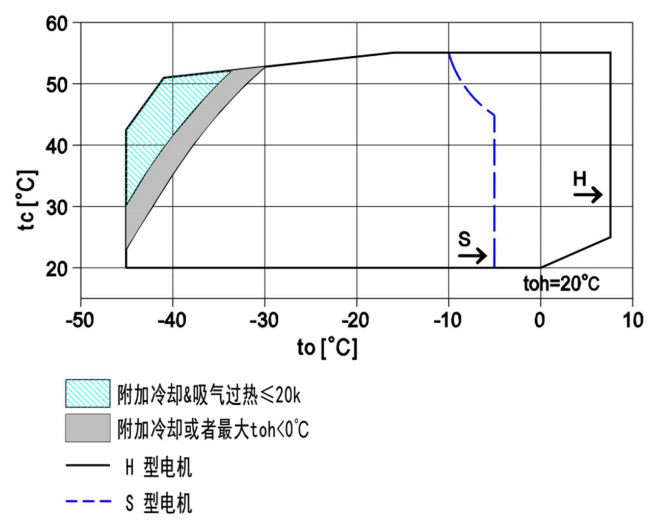

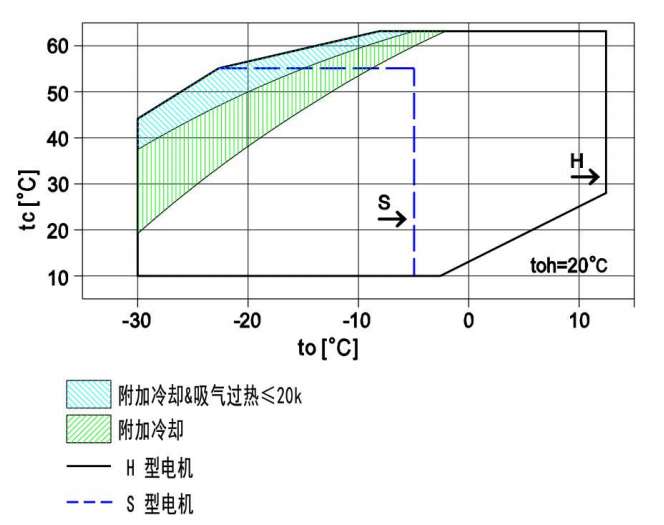

Operating Range
| R404a R507a VKZS4V-6S.. VKDL6F-50H | R22 VKXS4A-3S.. VKDL6F-50H | R134a VKXS4A-3S.. VKDL6F-50H |
 |
 |
 |
