VKSJ
Classification:
Key words:
Share:
Product Details

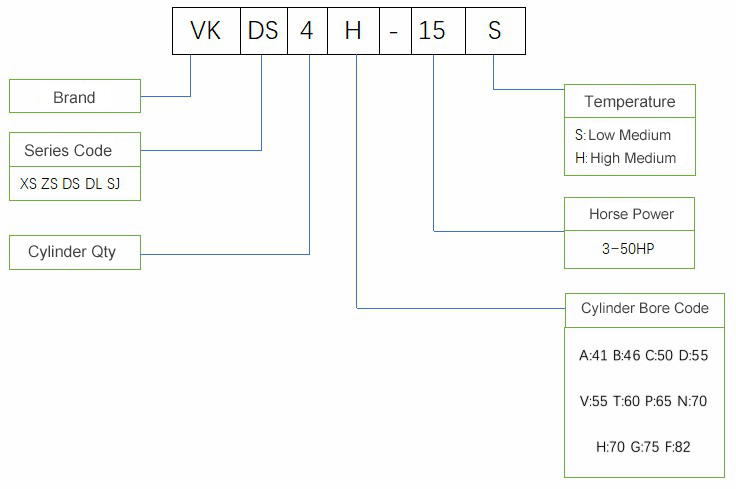

Model Introduction
SJ Series Dimension
| Model | LxWxH | Installation Dimension | Suction valve | Discharge valve | Suction Connect | Discharge Connect | NW | |||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
L |
M |
N |
SV |
DV |
|
|
|
mm |
mm |
mm |
mm |
mem |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
|
|
VKSJ6H-20L |
782 |
582 |
540 |
382 |
305 |
80 |
396 |
112 |
100 |
292 |
66 |
42 15/8 |
35 13/8 |
238 |
|
VKSJ6G-25L |
782 |
582 |
540 |
382 |
305 |
80 |
396 |
112 |
100 |
292 |
66 |
42 15/8 | 35 13/8 |
244 |
|
VKSJ6F-30L |
782 |
582 |
540 |
382 |
305 |
80 |
396 |
112 |
100 |
292 |
66 |
42 15/8 |
35 13/8 |
245 |
|
1 |
HP connect |
Rc 1/8 -28 |
|
2 |
LP connect |
Rc 1/8 -28 |
|
3 |
Oil filling plug (oil return port) |
Rc 1/4 -19 |
|
4 |
Oil sight glass |
M6* 16 |
|
5 |
Crankcase heater |
Rc 3/8 -19 |
|
6 |
Oil drain plug |
M26×1 .5 |
|
7 |
Oil pressure switch interface |
Rc 1/8 -28 |
|
8 |
Oil return port |
Rc 1/4 -19 |
|
9 |
Electronic oil pressure switch interface |
M20×1 .5 |
| 10 | Crankcase heaters | RC 3/8-19 |

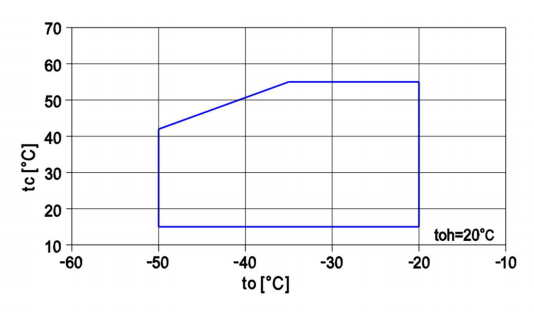

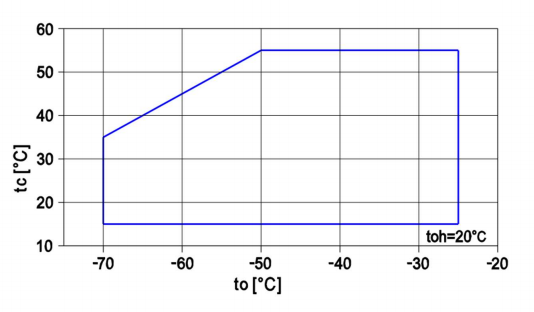

Operating Range
| R404a R507a VKSJ6H-20L VKSJ6G-25L VKSJ6F-30L | R22 VKSJ6H-20L VKSJ6G-25L VKSJ6F-30L |
 |
 |
